CCEI

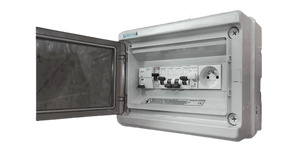

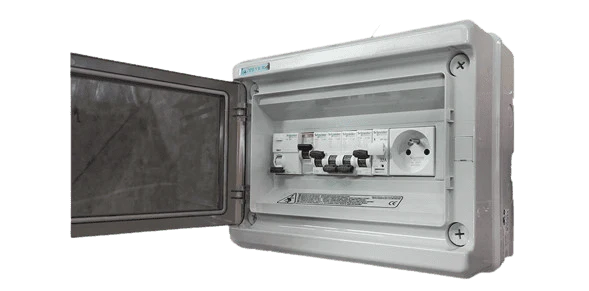

CCEI CLT-M+ Pool Distribution Box – 4 Outputs for Complete Technical Room

170,00 €
170,00 €
Sale Sold out

Connect and protect your technical room with CID/CLT distribution boxes: suitable circuit breakers, multiple outputs, D-curve for heat pumps, pre-wiring, and user protection. Description détaillée

  • Quick access to connections
  • Anti-splash/dust clear pane
  • CID-T+ three-phase option
Amperes:

Low stock

Calcul en cours…

Livraison offerte Livraison offerte dès 150€

Paiement sécurisé Paiement sécurisé

NEED HELP? Tel: +33.7.67.08.97.83

  • French company

  • Eco-friendly products

  • We'll support you

  • Easy to use

CLT-M+ CCEI Distribution Box: the complete box for a well-equipped technical room

The CCEI CLT-M+ distribution box is the most complete model in the range of distribution boxes. With its 4 protected outputs, including one D-curve output dedicated to the heat pump, it is designed to power all the equipment in a pool technical room from a single electrical inlet.

4 outputs to power all your technical room equipment

The CLT-M+ differs from the CID models in its number of outputs. It includes 3 C-curve outputs (2 × 10A and 1 × 16A) for your classic equipment, plus 1 D-curve output of your choice for the heat pump. This configuration allows, for example, to power a filtration box, a lighting box, a water treatment device and a heat pump, all from a single connection point.

How to choose the amperage for the heat pump output?

The CLT-M+ is available in two versions depending on the power of your heat pump: 10A for low-power heat pumps (pools up to 30-40 m³) and 16A for medium to high-power models. Refer to your heat pump's technical manual to determine the maximum absorbed current and select the corresponding rating. If in doubt, choose the higher rating.

The distribution box upstream of your installation

The CLT-M+ is designed to be placed at the head of your technical room, directly after the power supply cable coming from your home. It acts as the main distributor: each output then powers a dedicated box or equipment (filtration box, frost protection box, electrolyzer, heat pump). This centralized architecture simplifies wiring, facilitates maintenance, and allows each circuit to be individually cut off if necessary.

Enhanced safety with 30 mA differential protection

Like all boxes in the CCEI range, the CLT-M+ integrates a 30 mA residual current device at the head that protects people against the risk of electric shock. In the event of a current leak on one of the connected circuits, the power supply is cut off instantly. This protection complies with the requirements of standard NF C 15-100 applicable to swimming pool electrical installations.

Compatible with single-phase and three-phase

The CLT-M+ is compatible with 230V single-phase installations and can also be configured to operate in three-phase. Whether your home is supplied with single-phase or three-phase power, this box adapts to your existing electrical configuration.

CLT-M+ or CID-M+: how to choose?

The choice depends on the number of equipment in your technical room. If you only have a filtration pump and a heat pump, the CID-M+ with its 2 outputs is sufficient. As soon as you add a third piece of equipment (lighting, electrolyzer, booster for robot, etc.), the CLT-M+ becomes essential thanks to its 4 outputs. It is also recommended to plan for the CLT-M+ from the outset if you plan to complete your installation in the future: it is better to have an available output than to have to replace the box later. CCEI guarantees this product for 2 years.

Which CCEI distribution box to choose for your pool?

Feature CID-M CID-M+ CLT-M+ VigiWatt
Recommended use Simple installation without heat pump Installation with heat pump Complete technical room with heat pump Connected technical room with consumption monitoring
Number of outputs 2 2 4 4
C-curve outputs 2 × 16A 1 × 16A 2 × 10A + 1 × 16A 2 × 10A + 1 × 16A
D-curve output (HP) — 10A, 16A or 20A 10A or 16A 10A or 16A
30 mA differential protection ✓ ✓ ✓ ✓
Single-phase / three-phase compatible ✓ ✓ ✓ ✓
Connected consumption monitoring — — — ✓ VigiPool
Pre-wired ✓ ✓ ✓ ✓
Warranty 2 years 2 years 2 years 2 years
View product CID-M → CID-M+ → CLT-M+ → VigiWatt →
Manufacturer's referencePF10Y608PF10Y609
D curve departure (PAC)1 × 10A1 × 16A
Power supply230V single-phase
BrandCCEI
ModelCLT-M+
Three-phase compatibilityYes
Number of departures4
C curve departure n°11 × 10A
C curve departure n°21 × 10A
C curve departure n°31 × 16A
Differential protectionIntegrated 30 mA
Residual current circuit breakerYes
Box typeCompact distribution box
Pre-wiredYes
Protective coverYes
Warranty2 years

Shipping within 1 business day

Our packages are shipped daily via DPD, Colissimo, Chronopost, UPS, and DHL and are insured.

All orders placed before noon, Monday to Friday, are shipped the same day, and orders placed after noon are shipped the following business day.

Shipping costs

For mainland France, shipping costs are free for purchases over 150 euros. Below this amount, the delivery cost depends on the weight of your package and the carrier you select.

For international shipments, shipping costs can vary, depending on the destination and the cargo, from 4 euros to over 100 euros.

Returns

You can return your product within the 14-day withdrawal period upon receipt of your order by contacting customer service via email at contact@poolplanet.fr

Frequently Asked Questions about the CLT-M+ CCEI Splitter Box

How many devices can I connect to the CLT-M+? +

The CLT-M+ has 4 protected outputs: 3 C-curve outputs (2 × 10A and 1 × 16A) for your standard equipment, and 1 D-curve output for your heat pump. You can therefore power up to 4 distinct devices from this single box.

What is the difference between 10A and 16A C-curve outputs? +

The amperage corresponds to the maximum intensity that the circuit breaker allows through. 10A outputs are suitable for low-power equipment (lighting, small treatment devices), while the 16A output is suitable for larger loads such as a filtration box or a service outlet.

How to choose between 10A and 16A for the D-curve output? +

Consult your heat pump's manual to find out its maximum absorbed current. Choose 10A for low-power heat pumps (pools up to 30-40 m³) and 16A for more powerful models. If in doubt, opt for 16A.

Can I use the CLT-M+ without a heat pump? +

Yes. The D-curve output can power any equipment. A D-curve circuit breaker protects just as well as a C-curve, it is simply more tolerant to current peaks at start-up. You can connect your heat pump later to this output.

Does the CLT-M+ replace my house's electrical panel? +

No. The CLT-M+ is a secondary distribution box dedicated to the pool. It connects downstream of your main electrical panel, via a power cable run between the house and the plant room. Your main panel must include a dedicated protected output for powering the pool plant room.

Does the box protect against electrocution? +

Yes. The integrated 30 mA residual current device instantly cuts off the power in the event of a current leakage, protecting people against the risk of electrocution. This protection complies with standard NF C 15-100.

Does the CLT-M+ work in three-phase? +

Yes. The box is compatible with single-phase 230V installations and can be configured to operate in three-phase.

Do I need an electrician to install the CLT-M+? +

The box is pre-wired at the factory, but the connection to your home's electrical panel and the wiring of the equipment must be carried out in accordance with standard NF C 15-100. If you do not have electrical skills, call a qualified professional.

What is the advantage of the CLT-M+ compared to several separate CID boxes? +

The CLT-M+ centralizes all outputs in a single box with a single input and a single differential protection. It's cleaner, more economical, and easier to maintain than stacking several cascaded CID boxes.

What is the warranty for the CLT-M+? +

The CLT-M+ box is guaranteed for 2 years by CCEI, a French manufacturer specialized in electrical equipment for swimming pools for over 40 years.
