The exact part you need for your Zelia ZLT M. Original CCEI complete cell with self-cleaning electrodes and integrated sensors. Description détaillée
- ZELIA ZLT M Compatibility
- Original CCEI cell
- Integrated temperature and flow sensor
Livraison offerte dès 150€
Paiement sécurisé
-
French company
-
Eco-friendly products
-
We'll support you
-
Easy to use

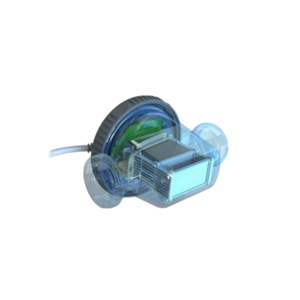

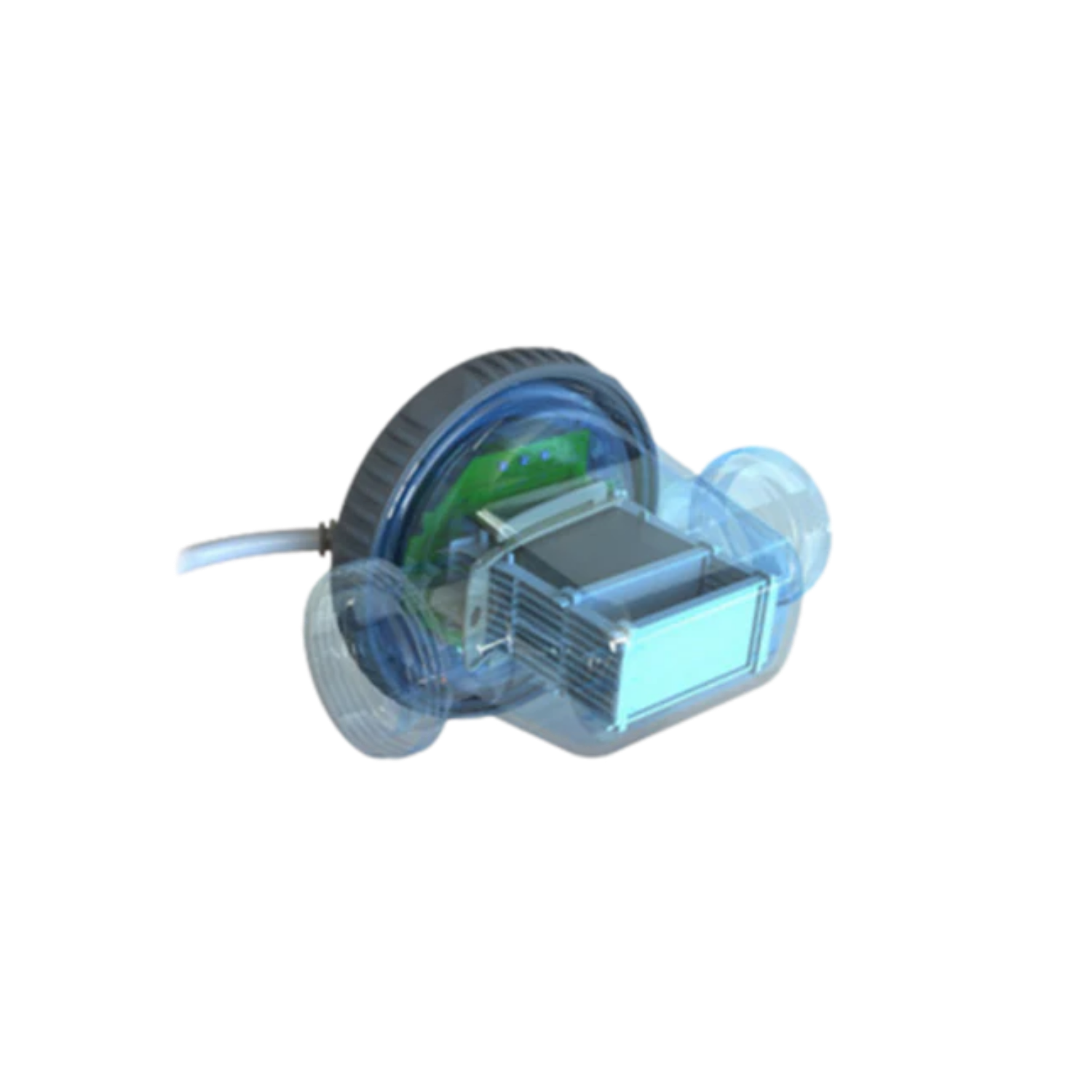

Restore optimal chlorine production with the CCEI Zelia ZLT M Cell. Designed for pools up to 50 m³, this manufacturer-certified spare part (Ref. PF160104) ensures the longevity of your installation. Unlike generic compatible cells, this authentic Zelia model includes the thermoregulation system and flow detection within the cell body, saving you from risky DIY modifications during replacement.
A compact, smart, and complete cell
The Zelia ZLT M cell stands out with its "all-in-one" design. Unlike conventional cells, it incorporates all the necessary elements for controlling your water treatment:
- Integrated sensors: The flow detector (for safety) and temperature probe (for thermoregulation) are molded into the cell. No additional drilling is required.

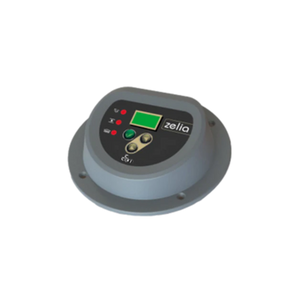

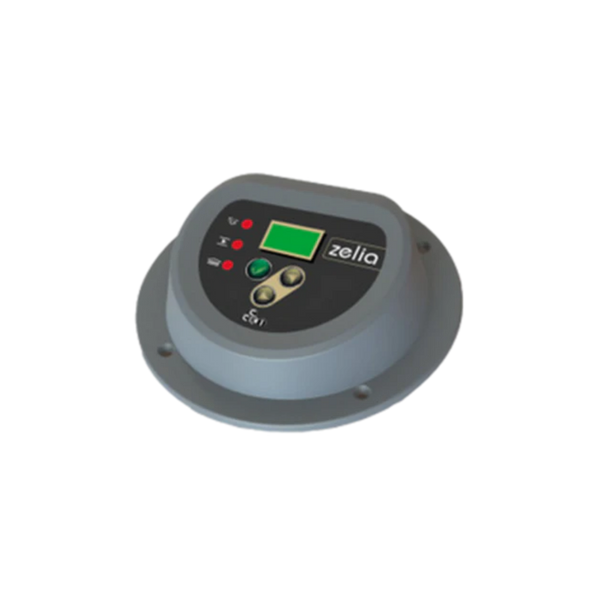

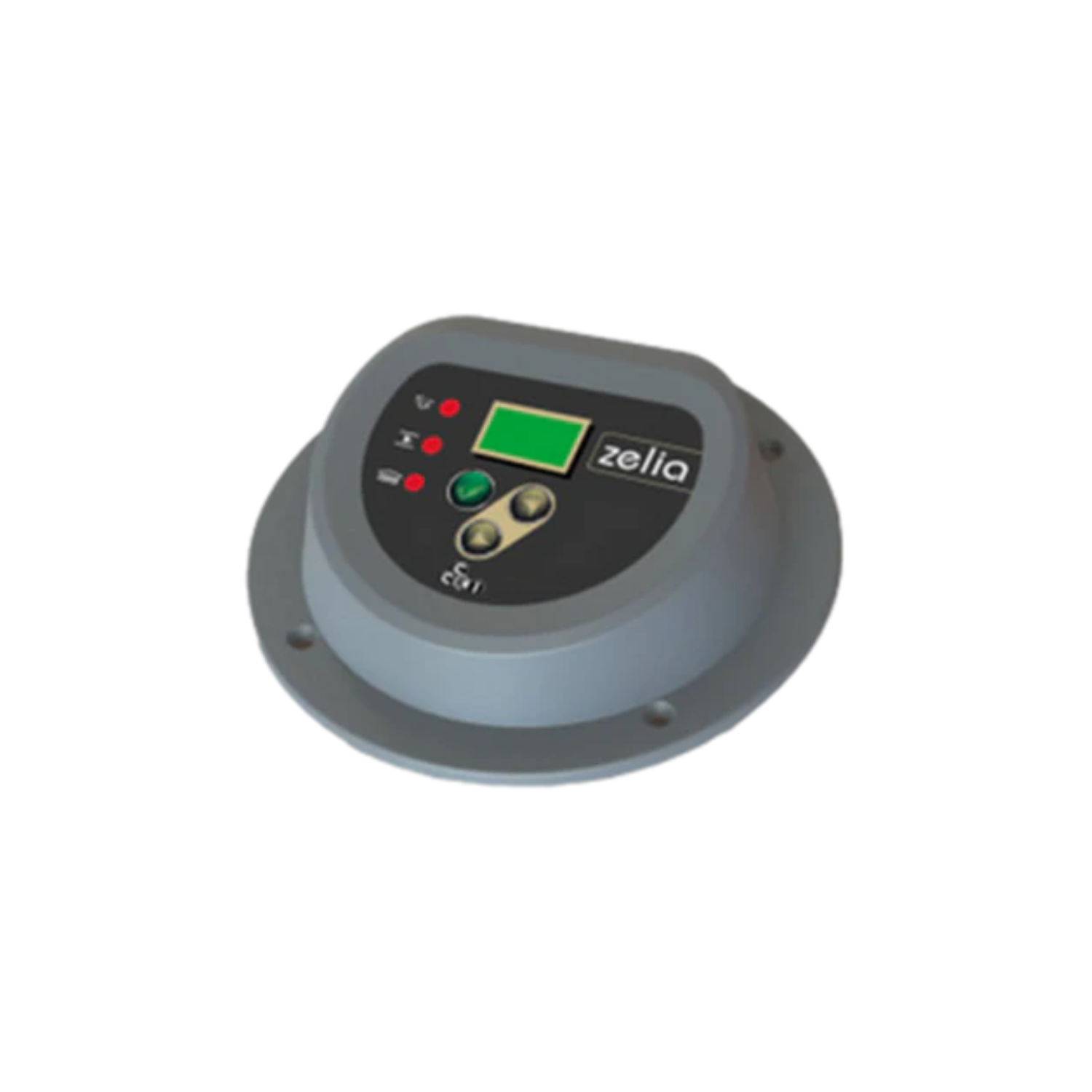

- Onboard control: The display and selection buttons are located directly on top of the cell for simplified adjustment.
Easy installation: ideal for renovation

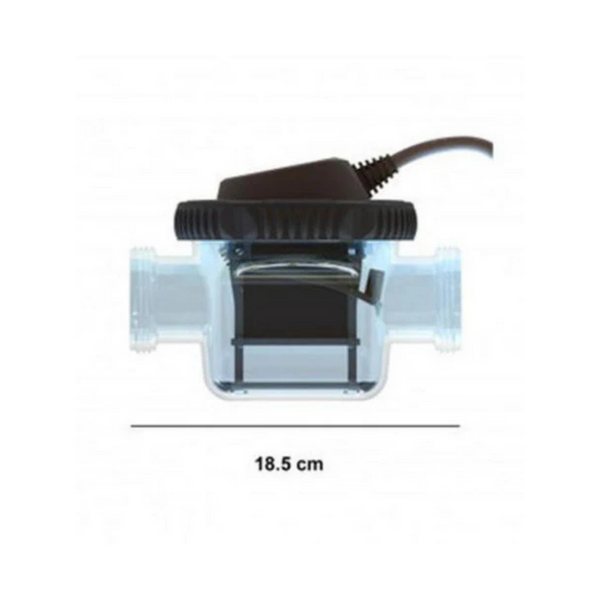

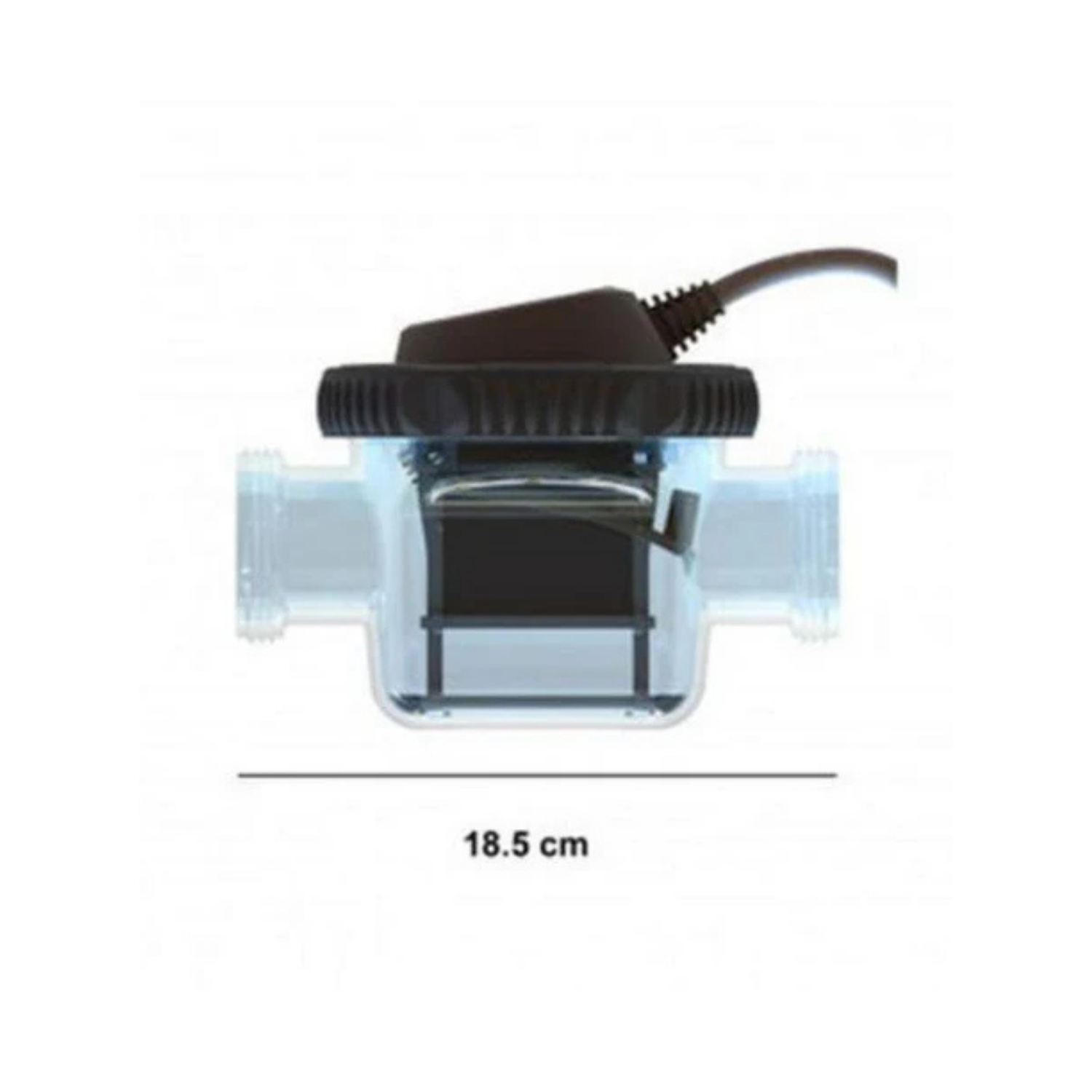

Thanks to its ultra-short format (only 185 mm), the Zelia ZLT M cell fits everywhere:
- Perfect for buried or cramped technical rooms.
- Ideal for integration into a filter block (original installation or renovation).
- Simple in-line or By-Pass installation with a single cut in the piping (Ø 50 mm fittings provided).
Robust and durable design

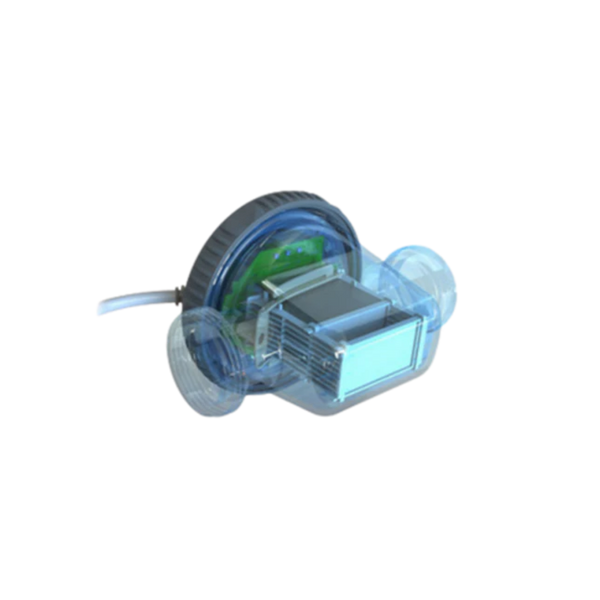

Beyond its intelligence, the Zelia cell is designed to last. It is equipped with solid titanium plates coated with ruthenium, offering a theoretical lifespan of up to 15,000 hours. Its transparent casing also allows you to visually check the condition of the plates at any time.
Intuitive and award-winning visual control
Awarded by the industry for its innovation, the Zelia cell communicates with you through light:

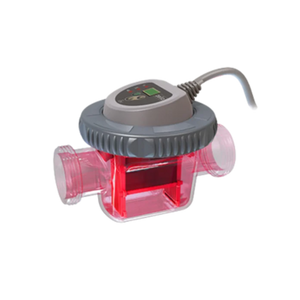

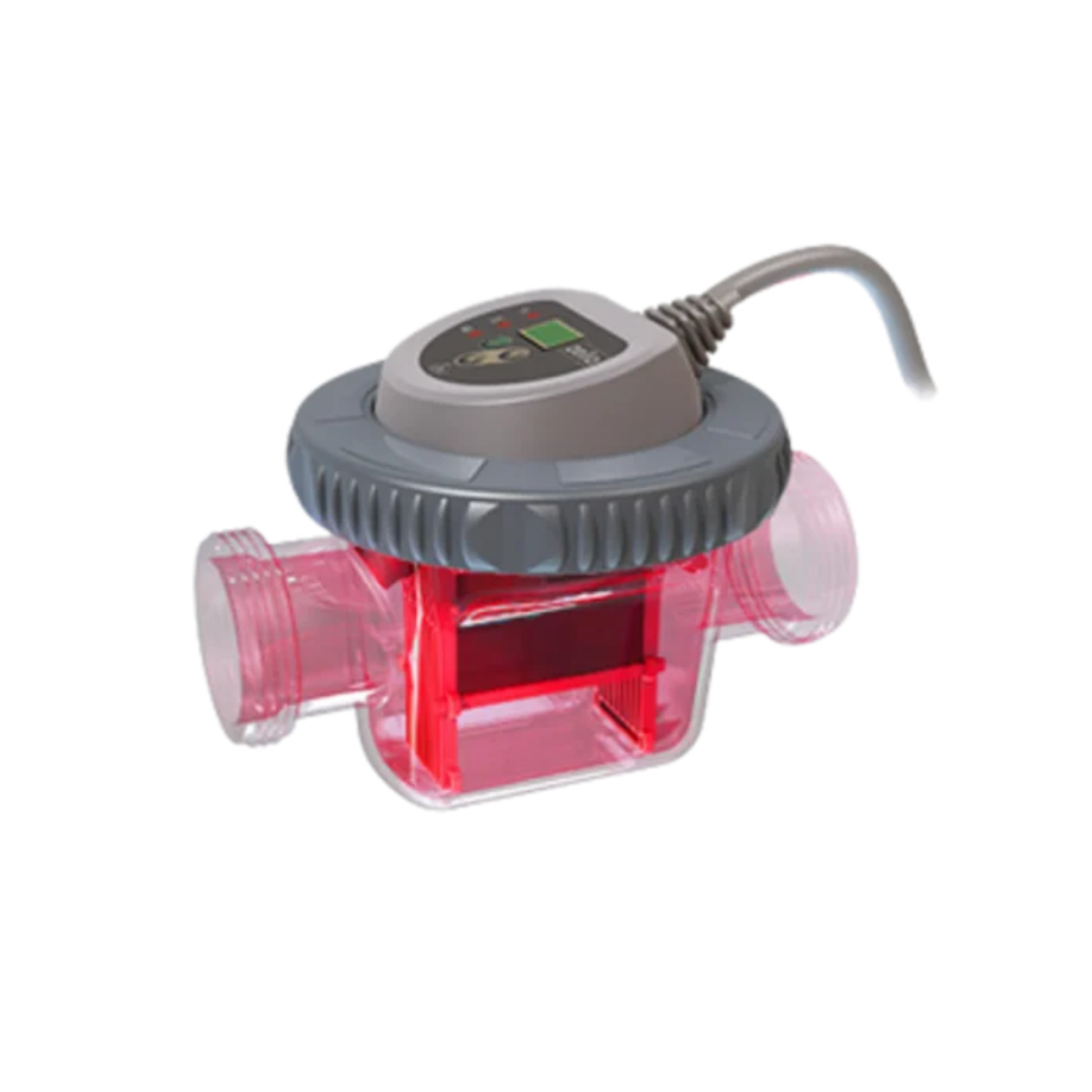

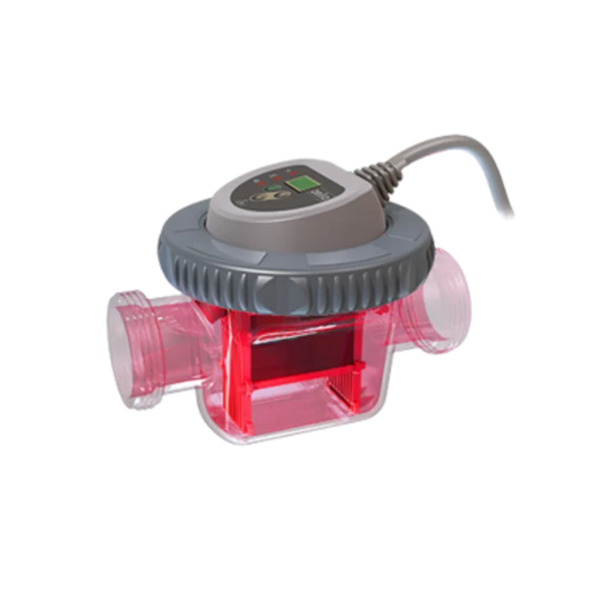

- Intelligent LED lighting: The LEDs located under the display change color to instantly inform you of the water temperature (when stopped) or salt level (during production).
- Total transparency: The transparent casing allows you to quickly check the condition of the titanium plates (ruthenium coating), water cleanliness, and proper electrolysis operation (bubble formation).
Comparison of available Zelia ZLT cells
| Cell Model | Compatible Electrolyzer | Pool Volume | Reference |
|---|---|---|---|
| ZLT XS Cell | Zelia ZLT XS | 15 m³ | PF160100 |
| ZLT S Cell | Zelia ZLT S | 30 m³ | PF160102 |
| ZLT M Cell | Zelia ZLT M | 50 m³ | PF160104 |
| ZLT L Cell | Zelia ZLT L | 75 m³ | PF160110 |
* Check the reference number on the label of your old cell to confirm the model or contact our team if in doubt.
Le ZLT s'installe sur une canalisation au diamètre 50mm, à l'aide des raccords union fournis. Il s'installe en aval de la filtration (après le filtre).
Il peut être positionné à l'horizontale comme à la verticale.
Préférer une installation en bypass (indispensable au-delà de 15m3/h) afin de pouvoir maîtriser le débit dans la cellule et la démonter sans interrompre la filtration.
Installation en ligne:
Installation en bypass:
| Model | ZLT M |
|---|---|
| Pool Volume | 50m3 |
| Supplier Reference | PF160104 |
| Chlorine Production | 12 g/h |
| Weight | 2.85 kg |
| Compatibility | Zélia ZLT Salt Chlorinator |
| Power Supply | 230V |
| Maximum Flow Rate | 12 m3/h |
| Cell Cleaning | Automatic |
| Cell Dimensions | 192 x 138 x 134 mm |
| Indicators | By color |
| Connection | Ø 50 mm |
Shipping within 1 business day
Our packages are shipped daily via DPD, Colissimo, Chronopost, UPS, and DHL and are insured.
All orders placed before noon, Monday to Friday, are shipped the same day, and orders placed after noon are shipped the following business day.
Shipping costs
For mainland France, shipping costs are free for purchases over 150 euros. Below this amount, the delivery cost depends on the weight of your package and the carrier you select.
For international shipments, shipping costs can vary, depending on the destination and the cargo, from 4 euros to over 100 euros.
Returns
You can return your product within the 14-day withdrawal period upon receipt of your order by contacting customer service via email at contact@poolplanet.fr
FAQ - Zelia ZLT Cell (25/50/75/100)
Which device is this cell compatible with?
This cell is exclusively designed for electrolysers in the Zelia ZLT range. This is the compact, bright, egg-shaped device manufactured by CCEI. It must not be installed on other models (such as Limpido Z or ZLC) to avoid malfunction.
Can I replace a ZLC or ZLA with a ZLT?
No, this is not possible. Although CCEI transparent cells look very similar visually, their connectors and internal electronics are specific to each range. A ZLT cell will only work with a Zelia ZLT control box.
Which volume (25, 50, 75 or 100) should I choose?
You must choose the reference corresponding to the volume of your pool (25, 50, 75 or 100 m³). If you are hesitating between two sizes, it is advisable to choose the larger model for better efficiency and a prolonged cell lifespan.

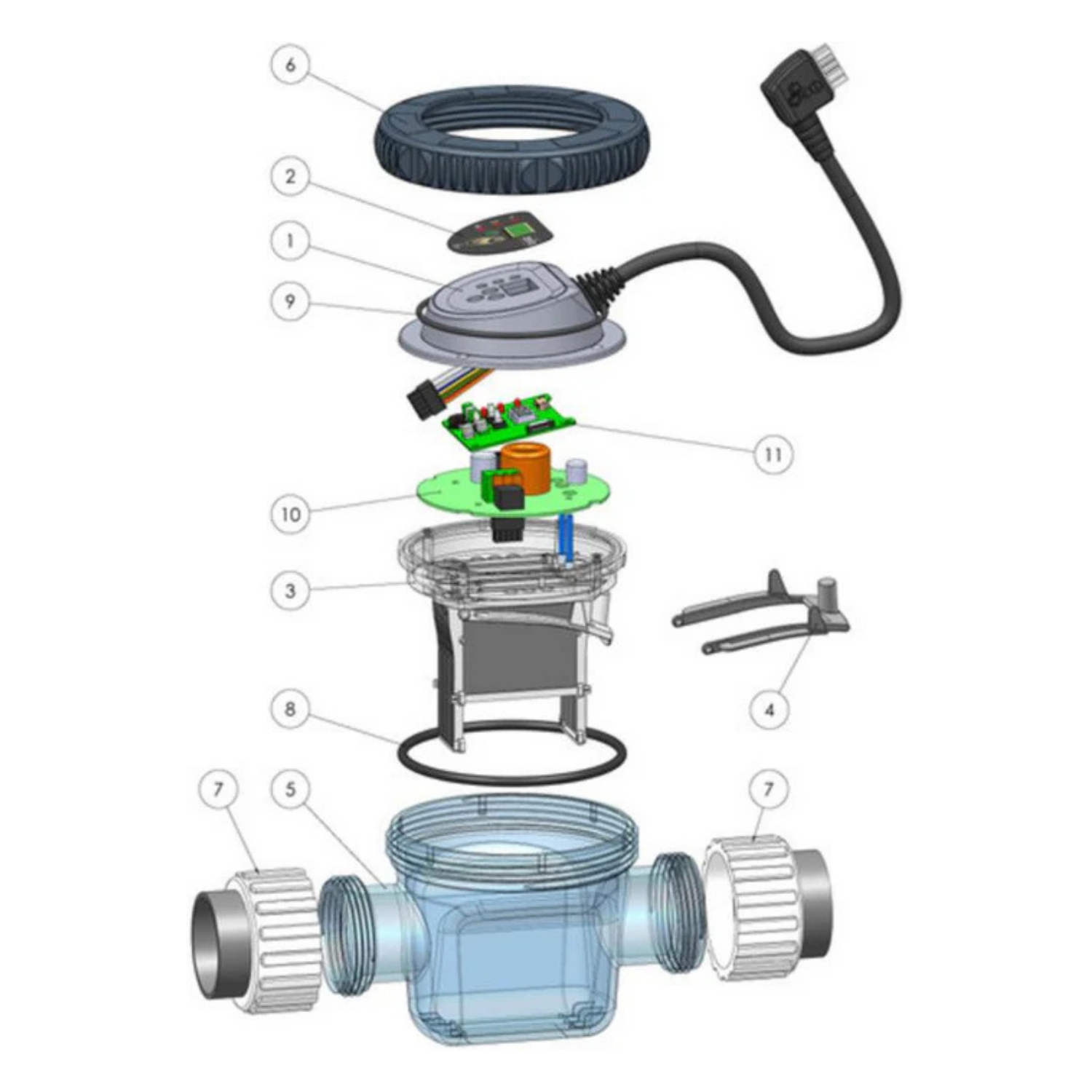

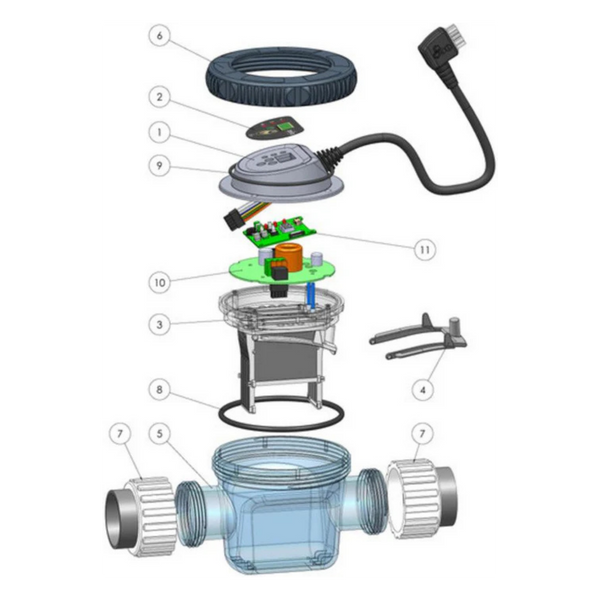

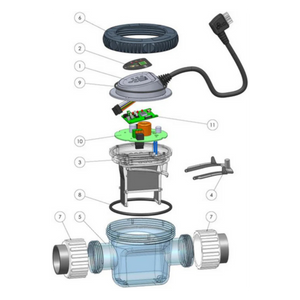

What does the ZLT cell contain?
The ZLT cell is a concentration of "all-in-one" technology. It integrates titanium plates, a flow detector (to stop production if there is a lack of water), a temperature sensor, and of course the LED lighting which changes colour according to the water's condition.
How do I protect my Zelia cell in winter?
As the cell is an electronic component sensitive to frost, it is imperative to dismantle it during passive winterisation. Use the winterisation plug (originally supplied with the device) to close the hydraulic circuit and store the cell in a dry, frost-free place.
